GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম Ebocom
সাক্ষ্যদান ISO
মডেল নম্বার জিজেবিএফজেএইচ
ন্যূনতম চাহিদার পরিমাণ 2000 মি
মূল্য 0.1 USD per Meter
প্যাকেজিং বিবরণ পাতলা পাতলা কাঠের ড্রাম বা কাস্টমাইজড
ডেলিভারি সময় 3-10 দিন
পরিশোধের শর্ত এল/সি, টি/টি
যোগানের ক্ষমতা প্রতিদিন 50 কিমি

বিনামূল্যে নমুনা এবং কুপন পেতে আমার সাথে যোগাযোগ করুন।

হোয়াটসঅ্যাপ:0086 18588475571

ওয়েচ্যাট: 0086 18588475571

স্কাইপ: sales10@aixton.com

যদি আপনার কোন সমস্যা হয়, আমরা ২৪ ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
কোর 2-48 ফাইবার শক্তি সদস্য আরমিড সুতা/পলিয়েস্টার সুতা
শিথ Lszh তাপমাত্রা -20 থেকে 70 ডিগ্রি সেলসিয়াস
সার্টিফিকেশন আইএসও ফাইবার বাফার টাইট বাফার ফাইবার
ফাইবার টাইপ এসএম ফাইবার রঙ ক্রোম্যাটোগ্রামে উল্লেখ করুন
বিশেষভাবে তুলে ধরা

Indoor breakout fiber optic cable

,

Single mode LSZH fiber cable

,

4-48 core fiber optic cable

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

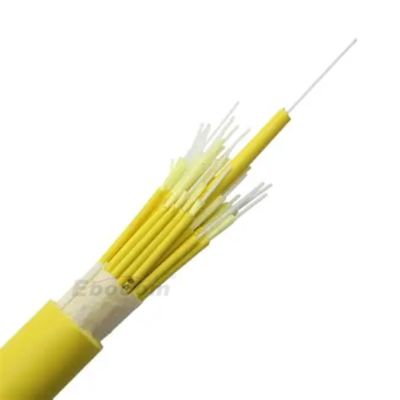

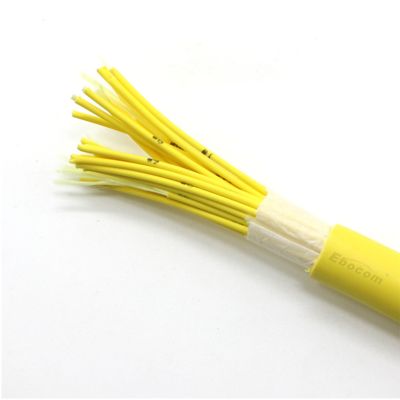

The GJBFJH indoor breakout fiber optic cable is specially designed for indoor fiber distribution and patching systems that require flexibility, safety, and reliability.
This cable adopts a central FRP (Fiber Reinforced Plastic) strength member, surrounded by multiple 2.0mm sub-units, each consisting of a tight-buffered fiber, aramid or polyester yarns, and an LSZH (Low Smoke Zero Halogen) outer jacket.
It ensures easy termination, excellent mechanical strength, and low signal loss, making it ideal for data centers, FTTH networks, office buildings, and telecom rooms.

Key Features

  • Stable performance: High-quality single-mode G.657A1 or G.652D fiber ensures low attenuation and stable transmission.

  • Reliable strength: Central FRP member and aramid yarn reinforcement provide excellent tensile and crush resistance.

  • Fire safety: LSZH sheath offers flame retardant, low smoke, and halogen-free protection for indoor environments.

  • Easy handling: Each sub-unit can be directly connected, terminated, or re-routed, simplifying installation and maintenance.

  • Wide applications: Suitable for LAN networks, distribution frames, FTTH wiring, and indoor backbone cabling.

Applications

  • Data centers and telecom rooms

  • Building backbone cabling

  • FTTH and FTTB systems

  • Indoor distribution and patching networks

  • Optical communication equipment interconnection

Technical Parameters

Item Description
Cable Type GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type Single Mode (G.657A1 / G.652D)
Fiber Count 2–48 cores (customizable)
Sub-unit Structure 2.0mm tight-buffered fiber + Aramid/Polyester yarns + LSZH jacket
Central Strength Member FRP (Fiber Reinforced Plastic)
Outer Jacket Material LSZH (Low Smoke Zero Halogen)
Outer Diameter 7.0–12.0mm (depending on fiber count)
Tensile Strength ≥ 1500N
Crush Resistance ≥ 1000N/100mm
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Color Options Yellow (SM)

GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket 0
