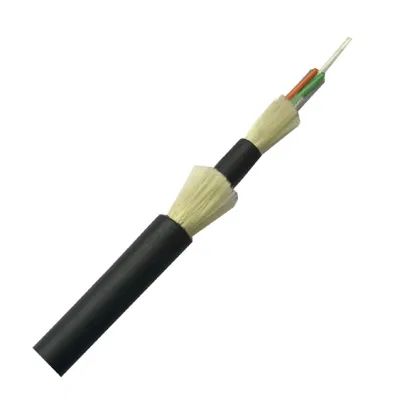

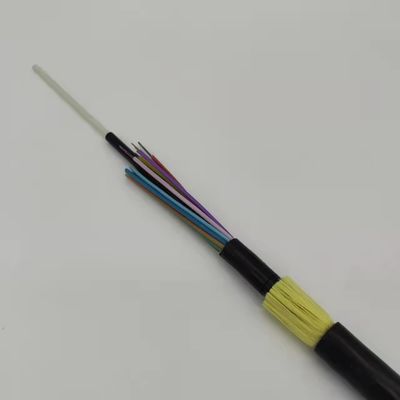

All Dielectric Self Supporting Fiber Optic Cable 48 96 Core Span100m SJ For Network Construction
| উৎপত্তি স্থল | শানডং ， চীন |
|---|---|
| পরিচিতিমুলক নাম | OEM |
| সাক্ষ্যদান | ISO TLC |
| মডেল নম্বার | ADSS -48B1.3 |
| ন্যূনতম চাহিদার পরিমাণ | 3000 মি |
| মূল্য | EXW $0.35/M |
| প্যাকেজিং বিবরণ | 1। আয়রন-উডেন ড্রাম বা অ-ফিউমিগেশন কাঠের ড্রাম, সাধারণ কাঠের ড্রাম। 2। ড্রামের আকার ডিজাইন করা যেতে |
| ডেলিভারি সময় | 5-8 দিন |
| পরিশোধের শর্ত | টি/টি, এল/সি |
| যোগানের ক্ষমতা | 20 কিলোমিটার/দিন |
বিনামূল্যে নমুনা এবং কুপন পেতে আমার সাথে যোগাযোগ করুন।
হোয়াটসঅ্যাপ:0086 18588475571
ওয়েচ্যাট: 0086 18588475571
স্কাইপ: sales10@aixton.com
যদি আপনার কোন সমস্যা হয়, আমরা ২৪ ঘন্টা অনলাইন সহায়তা প্রদান করি।
xপণ্যের বিবরণ
| ফাইবার টাইপ | G652D/G657A1 A2 | ফাইবার গণনা | 2-288 কোর |
|---|---|---|---|
| শক্তি সদস্য | এফআরপি | জ্যাকেট | পিই |
| জ্যাকেট রঙ | কালো | ব্র্যান্ড | ওএম |
| বিশেষভাবে তুলে ধরা | ADSS fiber optic cable 96 core,dielectric fiber optic cable 100m span,self supporting fiber cable network construction |
||
পণ্যের বর্ণনা
Description
ADSS (All-Dielectric Self-Supporting) fiber optic cable is a type of cable designed for aerial deployment that is self-supporting, meaning it does not require a separate messenger or support wire. Its all-dielectric, non-metallic construction is crucial for installation on power lines, and its design provides mechanical strength, lightweight handling, and resistance to environmental factors like ice, wind, and thermal changes. This makes it a cost-effective and economical solution for telecommunications, cable television, and power companies.
Features
All-dielectric and self-supporting: The cable contains no metallic components, which makes it safe to install on power lines without disrupting live electrical currents.
Self-supporting design: It is designed to be strung directly between poles or towers, reducing installation complexity and costs because no separate support wire is needed.

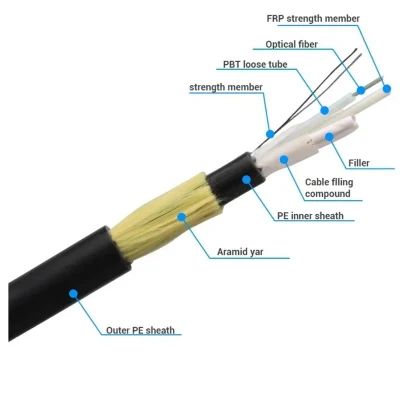

Mechanical strength: ADSS cables are built to handle external loads and environmental stresses, with reinforcements like aramid yarn and a central FRP (Fiber Reinforced Polymer) strength member.
Environmental resistance: It is built to withstand environmental factors such as wind, ice, and temperature fluctuations. Some versions also feature track-resistant jackets for use in high voltage environments.
Application flexibility: Designs are available for different span lengths (short, medium, and long), with single or double jacket options for varying levels of protection.
Common applications
Telecommunications: Deploying fiber optic networks over existing aerial rights-of-way for phone and internet services.
Electric power utilities: Installing fiber on power transmission and distribution lines for monitoring and communication.
Cable television: Expanding cable TV networks via aerial deployment.
Campus backbones: Connecting buildings on a campus where metallic cables cannot be used.
Physical Parameters
| Span(m) | Ice+Wind:0mm+35m/sec | Ice+Wind:12mm+30m/sec | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | |
| 100 | 13.9/5.472 | 152/102.01 | 7578/1704 | 2 | 13.8/0.543 | 150.0/100.67 | 6621/1489 | 2 |
| 200 | 14.3/0.562 | 161/108.05 | 10430/2346 | 3 | 14.1/0.555 | 157.0/105.37 | 9000/2024 | 3 |
| 400 | 15.9/0.625 | 199/133.56 | 23221/5223 | 3 | 15.4/0.606 | 187.0/125.50 | 19225/4331 | 3 |
| 500 | 16.7/0.657 | 220/147.65 | 30590/6881 | 3 | 16.1/0.633 | 204.0/136.91 | 24885/5598 | 3 |
| 600 | 16.3/0.641 | 209/140.27 | 26952/6063 | 4 | 15.7/0.618 | 196.0/131.54 | 22154/4983 | 4 |
| 800 | 16.5/0.649 | 216/144.97 | 29452/6625 | 5 | 15.9/0.625 | 201.0/134.90 | 24042/5408 | 6 |
| 1000 | 16.7/0.657 | 221/148.32 | 31271/7034 | 6 | 16.1/0.633 | 204.0/136.91 | 24407/5490 | 6 |
